Product Introduction

— Innovative technology, efficient mixing —

The helical ribbon mixer is a highly efficient, safe and reliable stirring equipment, mainly used for the mixing of various powder or semi-fluid materials. It achieves rapid and uniform mixing of materials through the forced shearing and diffusion effects generated during the rotation of the helical ribbon blades. This equipment features simple operation and high uniformity of mixing, and is widely used in industries such as food, chemical engineering, medicine, and building materials. The volume of the material bucket ranges from 100L to 5000L, and it can be customized and produced according to the customer's requirements.

Features of the helical ribbon mixer

1. The helical ribbon mixer, through its special helical ribbon blade design, forces the stirring of materials, ensuring that the materials achieve all-round tumbling and mixing during the mixing process, and guaranteeing efficient and uniform mixing of materials in a short time.

2. The helical ribbon mixer is suitable for the mixing of various powders, granules and flakes, and also has a good adaptability to materials with high viscosity, density difference and high specific gravity. In addition, it can also be customized according to the process requirements of customers to meet the production needs of different industries.

3. The structure of the helical ribbon mixer is simple and it is easy and thorough to clean.

4. The helical ribbon mixer is a new type of stirring and mixing equipment featuring stable operation, high uniformity, high loading coefficient, low energy consumption and low pollution.

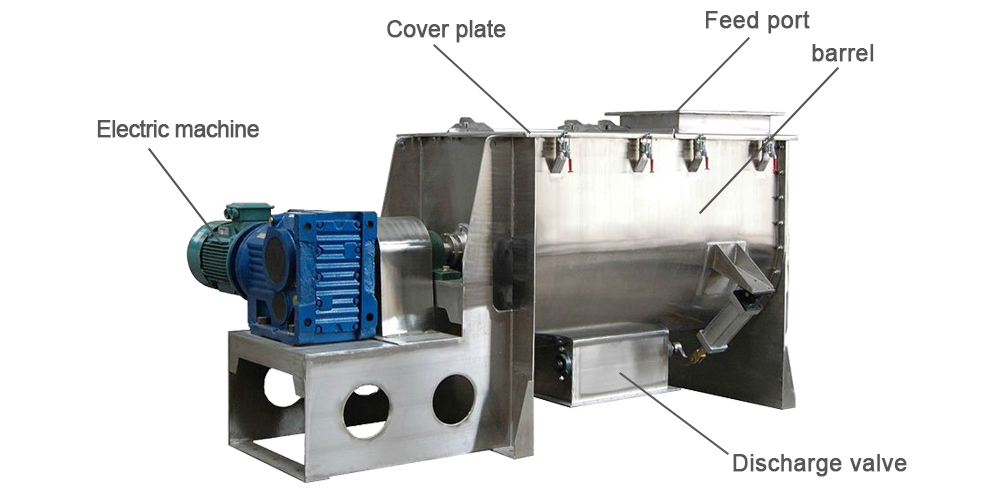

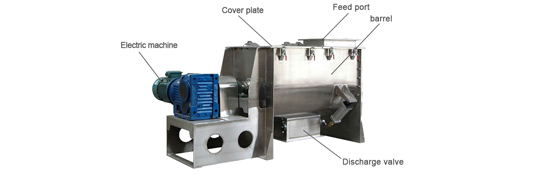

Structural diagram

— Multiple power, higher efficiency —

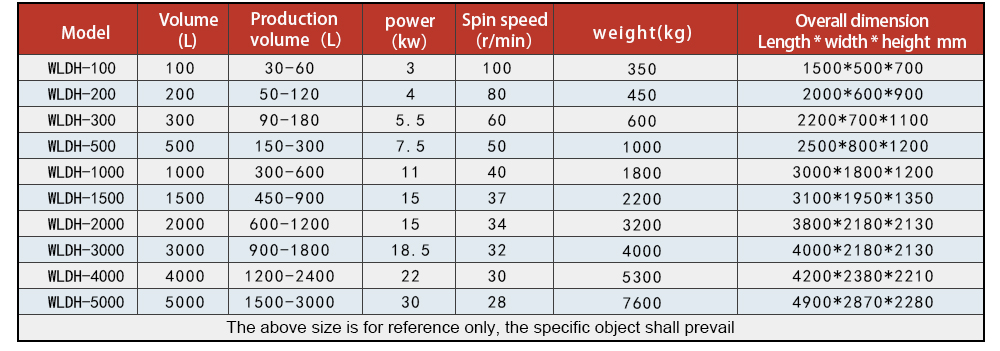

Product parameter

— Customized, complete specifications—

Scope of application

—Efficient mixing, meeting industry demands—
